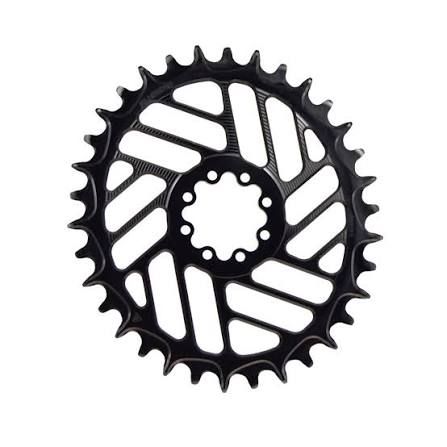

Chainring 1-speed direct mount narrow-wide Oval for SRAM 8-bolts MTB Boost ELM 3 mm offset

The original design ALUGEAR chainring “ELM”

TECHNICAL SPECIFICATIONS

• Offset: BOOST; 26T-36T 3,0mm

• Weight: 34T- 68g;

• Diameter: 34T- 152mm

• Timing: 108° (top dead center)

• Ovality: 12%

• Material: 7075-T6 aluminum

• Made: CNC milling

• Surface coating: Anodizing

COMPATIBILITY

• For cranks MTB SRAM 8 bolts Direct Mount, BB spindle interface: DUB

• In the case of using the 3mm offset chainring with MTB Standard axle type cranks, the chain line will be 52mm (the hub spacing (O.L.D.) is 148mm)

  In the case of using the 3mm offset chainring with MTB WIDE axle type cranks, the chain line will be 55mm (the hub spacing (O.L.D.) is 148mm)

• Optimal use with rear hubs 148mm (O.L.D.)

• MTB chainrings you may use the following chains: SRAM chains - 11sp, 12sp Eagle, 12sp T-Type; Shimano chains - 11sp, 12sp HG+

INFORMATION

ALUGEAR is specialized in the production of high-quality bicycle components. We are one of the first who starts to produce 8-bolts MTB chainrings

Most have used a 3-bolts design for direct mount chainrings. But now the 8-bolts standard has come to be used for DUB MTB cranks and Power Meters more

ALUGEAR chainrings are some of the lightest chainrings on the market. Using our experience and vigorous testing, we tweaked the arm design and strategically machined the chainrings so that only minimal sacrifices were made in impact strength in exchange for large gains in weight reduction

The chainrings are CNC machined from 7075 T6 aluminum and hard coat industrially anodized to provide protection from mechanical impacts, a good look, and an excellent tactile feel to each of the chainrings that lasts a long time
A unique tooth profile eliminates chain noise, reduces wear, and provides smooth operation on the entire system of all the most common combinations, such as 10, 11, and 12-speed drives. The Narrow Wide teeth guide the chain reliably

The tooth profile is specially designed for use with MTB chains

ALUGEAR chainrings are the best choice if you are looking for a technologically sound chainring with a unique design and low weight

RECOMMENDATIONS

• Use the screw set M4x8mm to mount on the crank

• We recommend the use of a clutch system rear derailleur for the best chain security

• It is also a good idea to use a new chain with your new ALUGEAR chainring

• It is recommended to use a well-lubricated chain on every ride
