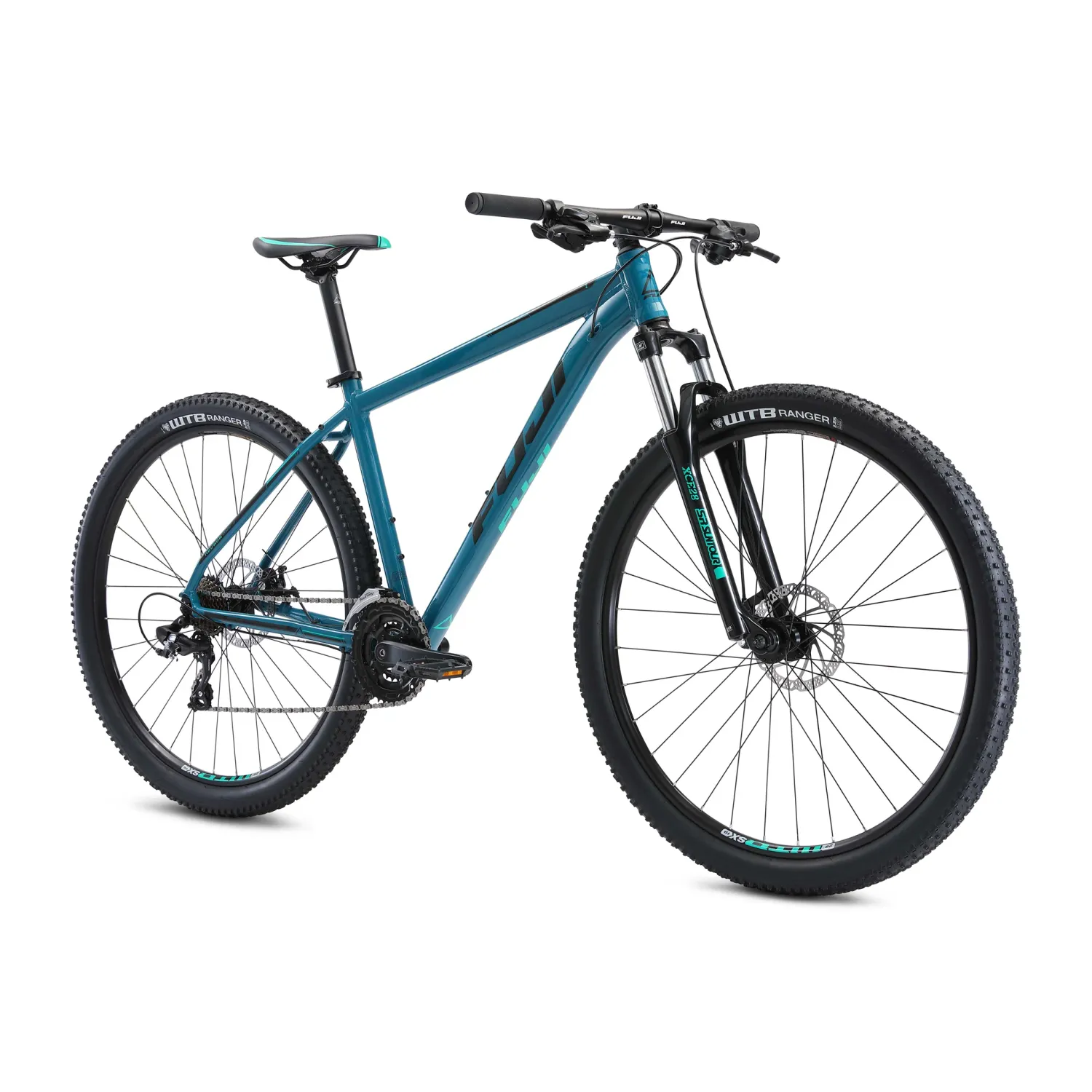

Fuji Nevada 29 1.9 MTB 3x7 Dark Teal Small

Name: Fuji Nevada 29 1.9 MTB 3x7 Dark Teal Small
SKU: 96663
Price: 750.0 USD
Availability: InStock

Product Details

Sizes

Color(s)

Dark Teal

Frame

Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle

Fork

SR Suntour SF19-XCE 29, 100mm

Crankset

Prowheel, 42/34/24T

Bottom Bracket

Sealed cartridge bearing

Pedals

Resin platform

Front Derailleur

microSHIFT Mezzo

Rear Derailleur

microSHIFT M21

Shifters

microSHIFT, 3 x 7-speed

Cassette

Falcon FW-710, 14-34T

Chain

KMC HV500

Wheelset

WTB SX19 rims 32H, Formula DC-20 front, DC-31 rear disc hubs, black spokes

Tires

WTB Ranger Comp, 29" x 2.25", 27tpi

Brakeset

Tektro M280, mechanical disc, 160mm rotors

Brake Levers

Tektro RS360A

Headset

1 1/8" sealed bearings

Handlebar

Fuji flat bar, alloy, 710mm

Stem

Fuji, forged aluminum, +/-6 degree

Grips

Fuji Performance Grip

Saddle

Fuji Performance Saddle

Seatpost

Fuji, alloy, 30.9mm

Weight

15.11 kg / 33.31 lbs

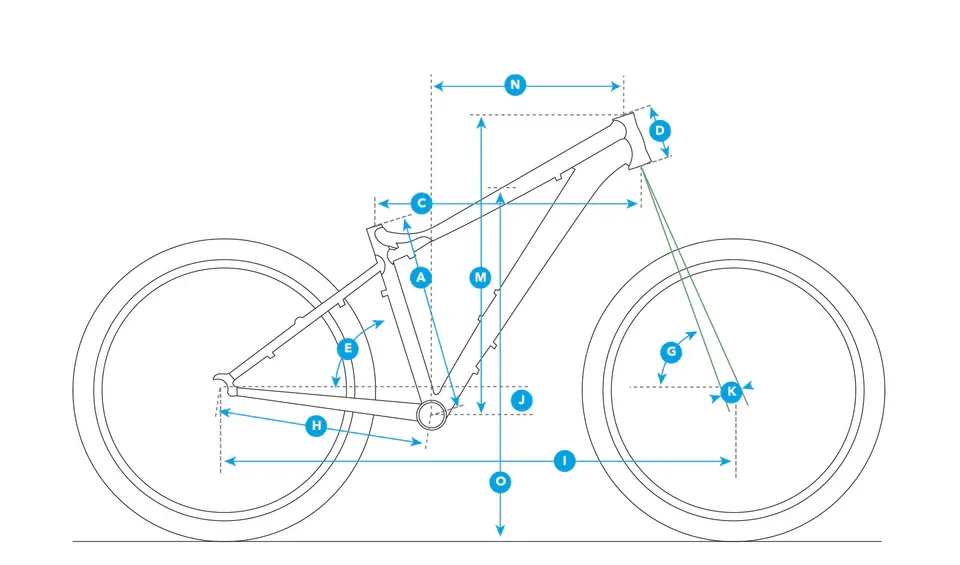

	Size	S	M	L	XL	XXL
	Bike Size	15"	17"	19"	21"	23"
A	Seat Tube, Center To Top	370	420	470	520	560
C	Top Tube, Effective	591	611	636	653	672
D	Head Tube Length	95	105	110	120	130
E	Seat Tube Angle	73°	73°	73°	73°	73°
G	Head Tube Angle	69°	69°	69°	69°	69°
H	Chainstay Length	450	450	450	450	450
I	Wheelbase	1113.5	1134	1160	1177.5	1197
J	Bottom Bracket Drop	55	55	55	55	55
K	Fork Offset	46	46	46	46	46
M	Stack	611.5	621	625.5	635	644
N	Reach	404	421	445	459	475
O	Standover	781	809	834.5	862	886
