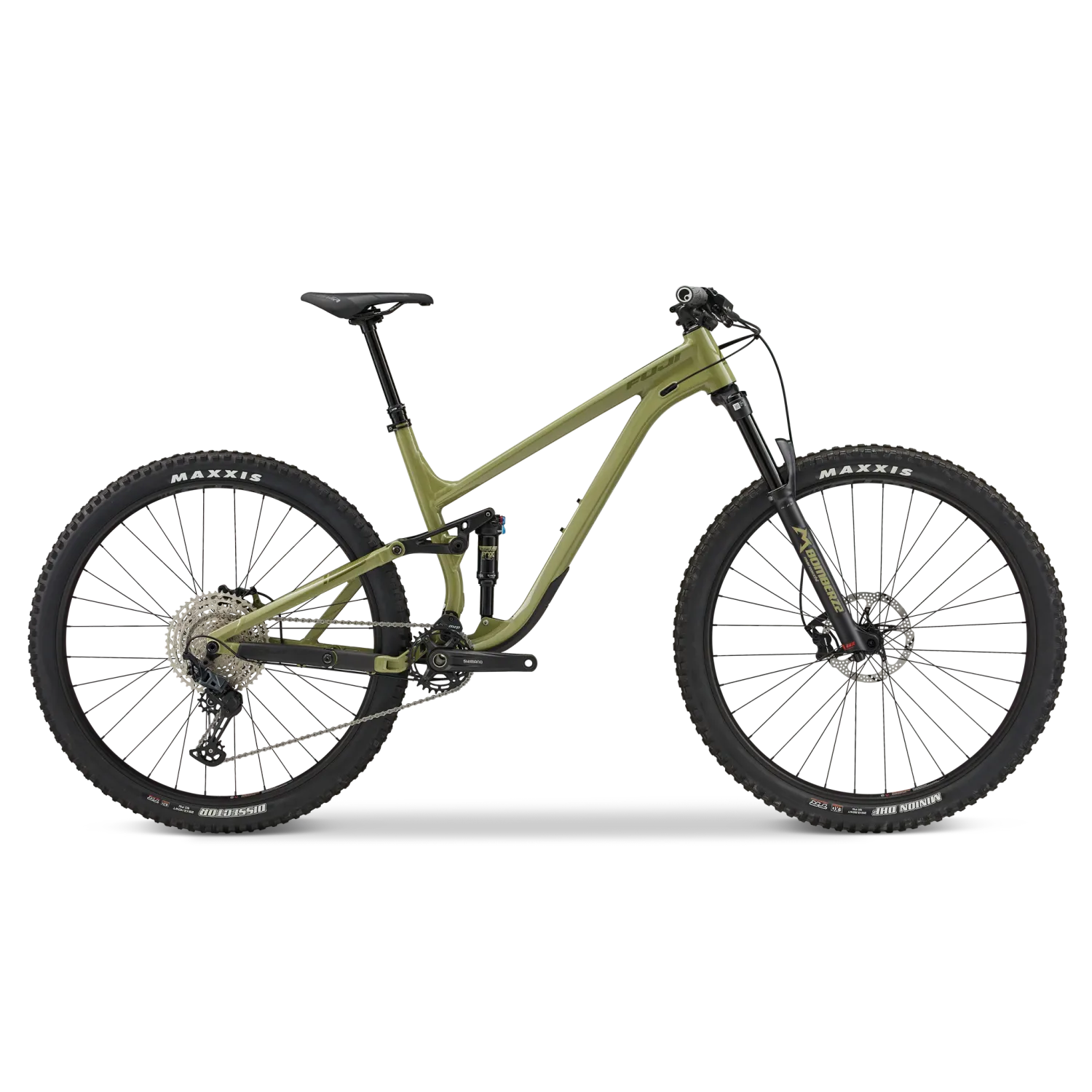

Fuji Rakan 29 1.3 XL
SKU 96644
$1,750.00
Sold out
Sold out
Save this product for later
Fuji Rakan 29 1.3 XL
Product Details
Color(s)
Khaki Green
Khaki Green
Frame
Fuji A6-SL super-butted alloy front and rear triangle, Enduro Max sealed cartridge bearings, MLink patented suspension system, Boost 148x12mm, 120mm
Fuji A6-SL super-butted alloy front and rear triangle, Enduro Max sealed cartridge bearings, MLink patented suspension system, Boost 148x12mm, 120mm
Fork
Marzocchi Bomber Z2 RAIL 29, 2-position, tapered alloy steerer, Boost 110x15mm, 140mm
Marzocchi Bomber Z2 RAIL 29, 2-position, tapered alloy steerer, Boost 110x15mm, 140mm
Rear Shock
Fox Float EVOL Performance
Fox Float EVOL Performance
Crankset
Shimano Deore, 32T
Shimano Deore, 32T
Bottom Bracket
Shimano, threaded
Shimano, threaded
Rear Derailleur
Shimano SLX, shadow plus
Shimano SLX, shadow plus
Shifters
Shimano Deore, 1 x 12-speed
Shimano Deore, 1 x 12-speed
Cassette
Shimano Deore, 10-51T
Shimano Deore, 10-51T
Chain
Shimano Deore
Shimano Deore
Wheelset
WTB ST i30 TCS 2.0 32H, Shimano MT400 front hub, Shimano MT410 rear hub, DT Swiss Industry stainless spokes
WTB ST i30 TCS 2.0 32H, Shimano MT400 front hub, Shimano MT410 rear hub, DT Swiss Industry stainless spokes
Tires
Maxxis Minion DHF, 29" x 2.50" WT, 60tpi, EXO, Tubeless Ready, folding, Maxxis Dissector, 29" x 2.40" WT, 60tpi, EXO, Tubeless Ready, folding
Maxxis Minion DHF, 29" x 2.50" WT, 60tpi, EXO, Tubeless Ready, folding, Maxxis Dissector, 29" x 2.40" WT, 60tpi, EXO, Tubeless Ready, folding
Brakeset
TRP Slate EVO, 180mm rotors
TRP Slate EVO, 180mm rotors
Brake Levers
TRP Slate EVO
TRP Slate EVO
Headset
FSA 1 1/8" - 1.5", sealed cartridge bearings
FSA 1 1/8" - 1.5", sealed cartridge bearings
Handlebar
Race Face Ride Riser Bar, alloy, 10mm rise, 760mm
Race Face Ride Riser Bar, alloy, 10mm rise, 760mm
Stem
Race Face Ride, alloy, +6 degree rise
Race Face Ride, alloy, +6 degree rise
Grips
Ergon GA20, Lock on
Ergon GA20, Lock on
Saddle
Selle Italia X3 Boost
Selle Italia X3 Boost
Seatpost
KS Rage-i dropper, 31.6mm, 15" - 125mm travel, 17, 19, 21" - 150mm travel, Westy Lever
KS Rage-i dropper, 31.6mm, 15" - 125mm travel, 17, 19, 21" - 150mm travel, Westy Lever
Accessories
MRP 1X Chainguide
MRP 1X Chainguide
Weight
TBD
TBD
| Size | S | M | L | XL | |
| Bike Size | 15" | 17" | 19" | 21" | |
| A | Seat Tube, Center To Top | 380 | 420 | 458 | 495 |
| C | Top Tube, Effective | 590 | 618 | 646 | 668.5 |
| D | Head Tube Length | 100 | 110 | 120 | 130 |
| E | Seat Tube Angle | 77° | 76.5° | 76° | 76° |
| G | Head Tube Angle | 65° | 65° | 65° | 65° |
| H | Chainstay Length | 431 | 431 | 431 | 431 |
| I | Wheelbase | 1194.9 | 1219 | 1243.3 | 1267.5 |
| J | Bottom Bracket Drop | 32 | 32 | 32 | 32 |
| K | Fork Offset | 42 | 42 | 42 | 42 |
| M | Stack | 607.9 | 616.9 | 626 | 635 |
| N | Reach | 450 | 470 | 490 | 510 |
| O | Standover | 748.3 | 766.5 | 762.4 | 783 |
| Stem | 40 | 40 | 40 | 40 | |
| Handlebar Width | 780 | 780 | 780 | 780 | |
| Crank | 170 | 170 | 170 | 170 | |
| Wheel Size | 29" | 29" | 29" | 29" | |
| Seat Post Diameter | 31.6 | 31.6 | 31.6 | 31.6 |
