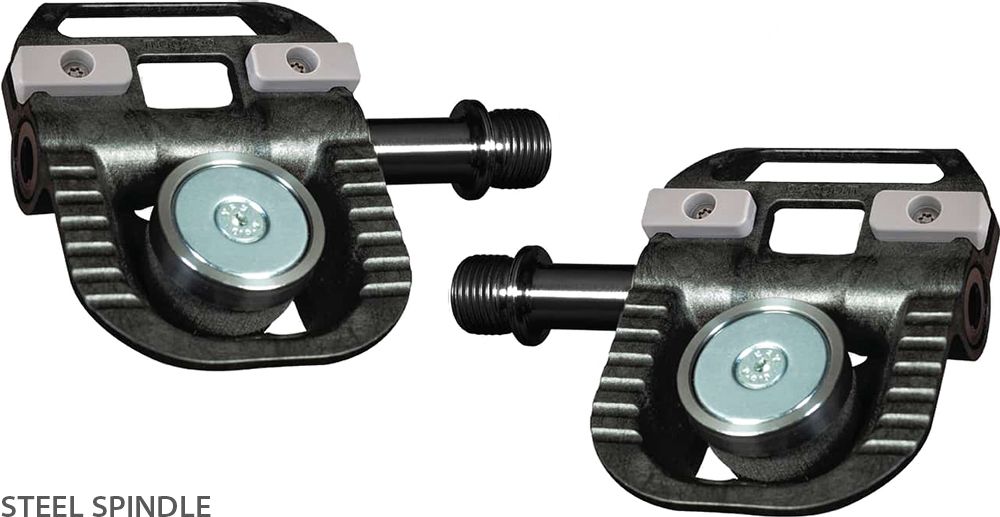

The magped GRAVEL is super light thanks to titanium or steel spindle and equipped with magnets on one side. The safety pedal is the pedal innovation for gravel bikes. Through the use of the patented magnetic mechanism is a safe, fast and easy detachment of the foot from the pedal at any time.

In comparison to standard click in pedals the risk of crash and injury will be reduced to a minimum – and your head stays free for a hassle free biking experience without fear. The first true alternative for gravel and XC bikes – titanium or steel spindle and xCarbon body

---

Features - magped GRAVEL Magnet Pedal

• Circular motion: The magped pedal ensures a continuous circular tread by employing your extensor muscles (70%) as well as your flexor muscles (30%) for maximum riding performance. You will feel the difference especially on longer rides.
• Pulling Force: Depending on your choice of pedal the magnet will connect you up to approx. 15 kg in pulling force. The force deploys primarily in a downward force and therefore a quick and simple release with a sideways move of your foot is possible practically without effort. But even in more critical situations the pulling force can be overcome without difficulties in a vertical direction as well.
• Weight: The magped pedal is a modern high quality flat pedal made from light CNC cut aluminium with a CrMo or Titanium spindle. All magped pedals are highly weight competitive to other high end pedals – in spite of the added magnet system.
• Positioning: The pedal allows for several degrees of twist of your foot and therefore provides less strain on your ankles during your rides. In addition the foot position can be varied to the front or back without a loss of pulling force for an ideal position on your ascend and your descend.
• Shoe plate: The shoe plate is made of anti corrosion treated steel and it is compatible with all SPD bike shoes. The shoe plate can be mounted very easily within a few minutes with 2 screws (ROAD 3 screws). In comparison to other systems the magped pedal is insensitive to dirt. Additionally the “walkability” of your bike shoe will be significantly improved.
• Technology: The magped pedal is equipped with 3 sealed high quality industrial type bearings. Pins can be exchanged if required. The high performance neodymium magnet is adjustable by means of an integrated polymer damper unit.

Product features

• Use: Gravel, XC
• Type: Kombi Magnet pedal
• Compatibility: Shoes with SPD System (Recommend SPD shoes with a fine to a medium coarse tread)
• Size: Length=86mm Wide=60mm Height=19mm
• Metallic plates 2 hole SPD: Strong (Increases the attraction force of the 200 N magnets by extra 30%.

Release force

• 200N: for biker staring from 45 kg

Spindle (choose variant)

• Steel spindle
• Titanium spindle

Weight (manufacturer information)

• Gravel pedals with steel spindle: 262g
• Gravel pedals mit titanium spindle: 212g
