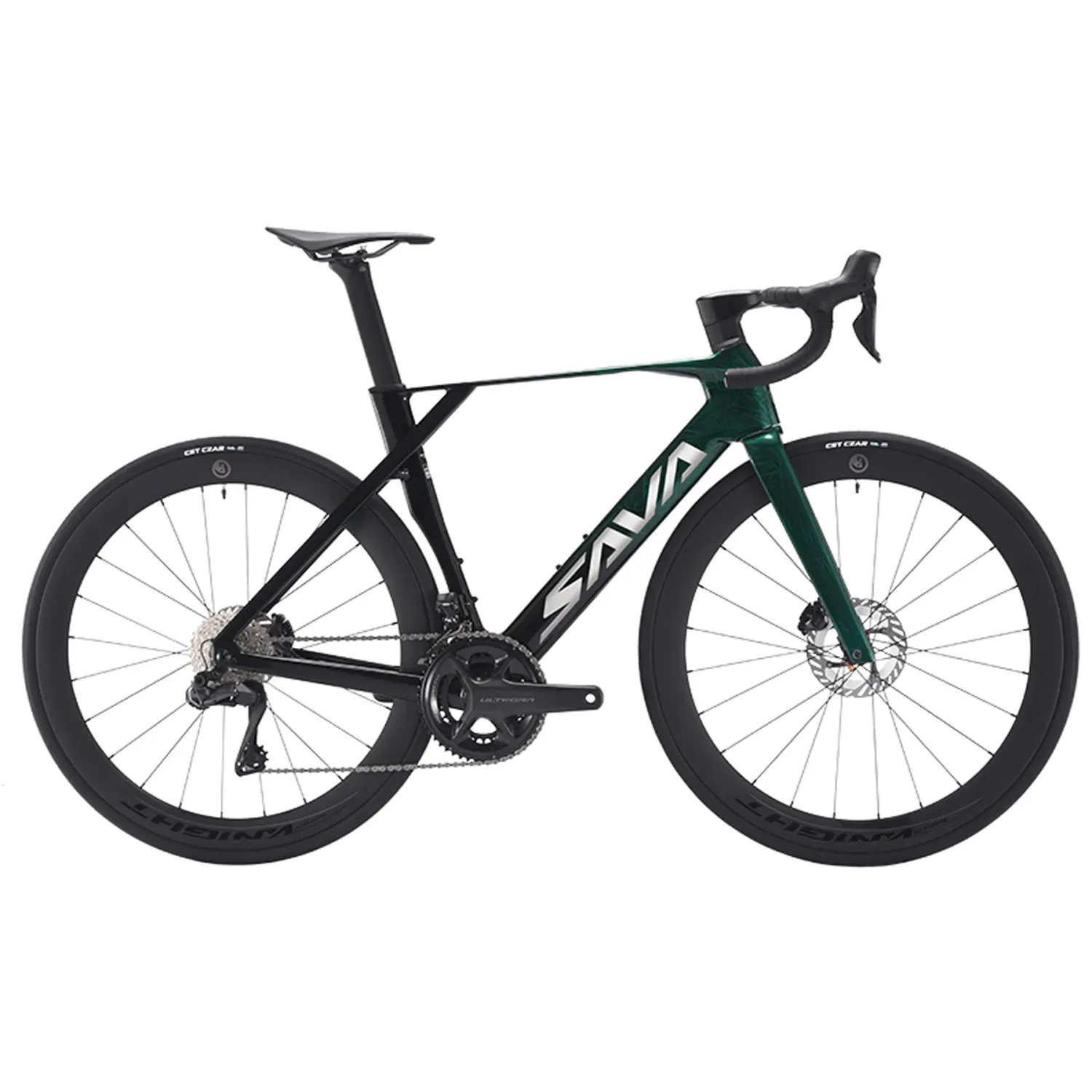

SAVA Blade R8 Large -Ultegra Di2 Full Carbon Road Bike 12SP Ice Crack Blue-Green

Product Details

Model	2025 SAVA Blade SLR8 W45/B60(R23-R8170-24S)
Weight	About 7.72kg(17lbs) Varies by size
Frame size	52cm Large
Color	Green

Frame	R23, Carbon fiber (CFR)
Fork	R23, Carbon fiber
Seat post	Carbon fiber, shaped 350MM

Rear Derailleur	SHIMANO Ultegra RD-R8150, 12-SPEED
Front Derailleur	SHIMANO Ultegra FD-R8150, 12-SPEED, CS-ANGLE: 61-66, GEAR: 50-54T, CL: 43.5MM
Crankset	SHIMANO Ultegra FC-R8100, 12-SPEED, 2, 170MM, 50-34T
Cassette	SHIMANO Ultegra CS-R8101, 12-SPEED, 11-12-13-14-15-17-19-21-24-27-30-34T
Shifters	SHIMANO Ultegra ST-R8170
Brakes	SHIMANO Ultegra BR-R8170, Hydraulic disc brake
Chain	SHIMANO CN-M8100, 110 L, 12-SPEED

Wheels	Carbon Fiber, (W45 wave wheels and B60 BORA WTO 60 DB Optional)
Rotors	SHIMANO RT-CL800, SS 140MM
Tires	700 x 28C Tires

Handlebar	Carbon fiber, integrated, 380*90
Saddle	Fizik saddle
Pedals	Bearing Pedals 9/16 (free include)

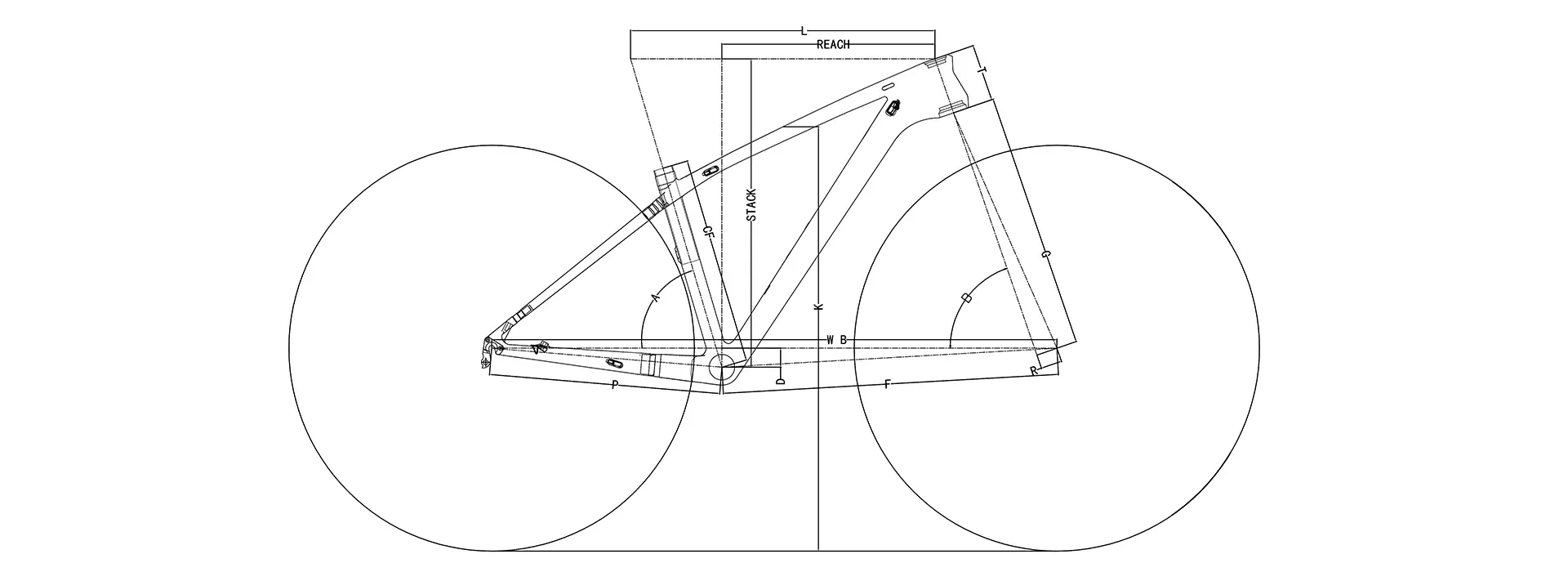

Parameter	450(XS)	480(S)	500(M)	520(L)	540(XL)
Recommend Height	156 - 168cm (5'1"-5'6")	168 - 175cm (5'6"-5'9")	175 - 180cm(5'9"-5'11")	180 - 188cm (5'11"-6'2")	Above 188cm
A Seat Tube (mm)	450	480	500	520	540
B Top Tube (mm)	505.77	522.4	539	555.6	572.9
C BB Drop(mm)	70	70	70	70	70
D Chainstay(mm)	405	405	405	405	405
E Scat Angle (°)	75.4°	74.8°	74.2°	73.6°	73°
F Head Angle(°)	71°	71.9°	72.5°	72.9°	72.9°
G Front Center(mm)	580.76	579.9	585.8	592.7	603.6
H Head Tube Length (mm)	100	118	136	154	173
I Fork Offset(mm)	49	49	45	45	45
J Reach (mm)	375.55	380.78	386.36	391.32	396.72
K Stack (mm)	499.95	521.37	539.69	558.24	576.40
L Frok Lenght(mm)	370.6	370.6	370.6	370.6	370.6
M Wheelbas (mm)	974.32	974.6	980.5	987.5	998.5
N Standover(mm)	734	756	778.76	794.92	813.43
