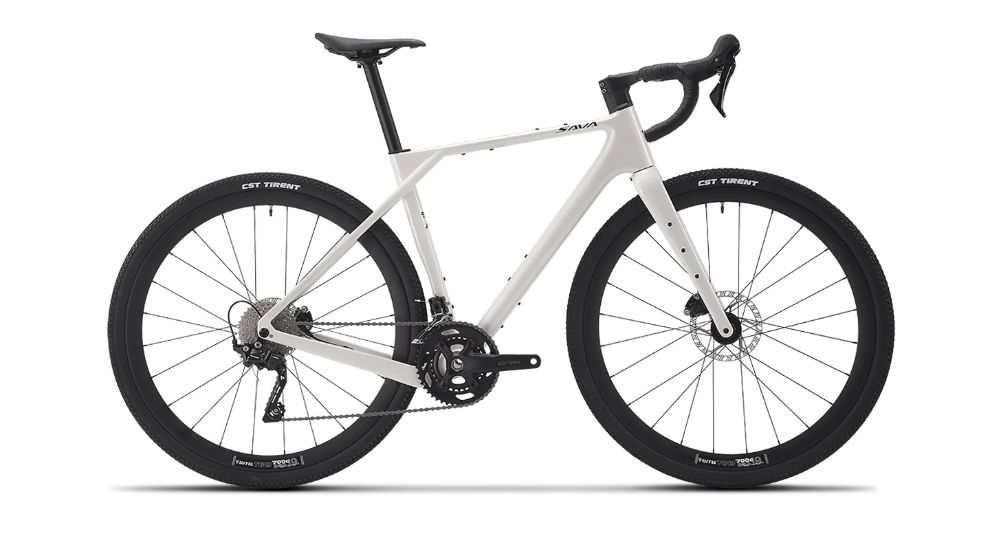

SAVA Gelaro S4-GRX400 Carbon Gravel Bike( XS 47cm)
$2,200.00
NEW
In stock: 2 available
1
Save this product for later
SAVA Gelaro S4-GRX400 Carbon Gravel Bike( XS 47cm)
Product Details
SPECIFICATIONS:
| Model | SAVA Gelaro S4 R21-GRX400-20S |
| Weight | About 10.2kg（22.5lbs） |
| Frame size | 47cm |
| Color | Elegant White |
FRAMESET
 |
Frame | R21 frame T800 Carbon Fiber |
 |
Fork | R21 fork,T800 carbon fiber |
 |
Seat post | Aluminum,31.6*350mm |
 |
Headset | JY,Bearing |
DRIVETRAIN
 |
Rear Derailleur | SHIMANO RD-RX400, GRX 10-SPEED |
 |
Front Derailleur | SHIMANO FD-RX400 |
 |
Crankset | SHIMANO FC-RX600, FOR REAR 10-SPEED,2, 170MM, 46-30W/O |
 |
Cassette | SUGEK CS-R6010 /HR10-34T,11-34T |
 |
Shifters | SHIMANO ST-RX400 |
 |
Brakes | SHIMANO BR-RX400 |
 |
Chain | KMCX10R,X10/NP/BKS/112L/RO/CL559R |
WHEELSETS
 |
Wheels | WTB TG19 Aluminum,700C*24H 19*24.5*36MM |
 |
Rotors | PRO PN28, 160mm, 6-Bolt Lock,140mm, 6-Bolt Lock |
 |
Tires | CST 700*40C 1870N DK27 |
 |
Hubs |
DH969TF, M1214G/24H100mm ,M1214G/24H142mm,Thru-Axis |
COMPONENTS
 |
Handlebar | Aluminum Flared Drop Bar,400*480*85 |
 |
Saddle | YBT-K785,pu |
 |
Pedal | Cast Aluminum Body, 9/16” Boron Axle, DU+Bearing(free include) |
Comfortable Upright Geometry
Our upright geometry design not only provides an expansive view of the path ahead, enabling riders to anticipate obstacles and terrain changes with ease, but also offers enhanced maneuverability. The elevated handlebar position allows for precise, intuitive control, ensuring you can effortlessly navigate even the most challenging gravel trails, rocky paths, or winding backroads.
Super strong loading capacity
18 meticulously designed screw holes empower this gravel bike with unparalleled cargo - carrying prowess, effortlessly accommodating racks, bags and accessories, ensuring your multi - day adventures are well - equipped and worry - free.
Rough, rugged frame
Crafted to withstand the harshest terrains and most challenging conditions, it features reinforced construction and robust materials that absorb impacts and resist wear.
Wide Flared Integrated Handlebar
The flared integrated handlebar, with its distinctive flared design, optimizes riding control and enhances sprinting power efficiency. It also expands loading space, combines aerodynamic advantages with a comfortable grip, delivering a more stable, efficient, and convenient all - round riding experience.
Ergonomic Saddle
SHIMANO GRX ST-RX400
SHIMANO GRX FD-RX400
SHIMANO CS-R6010
SHIMANO BR-RX400
SHIMANO GRX RD-RX400
SHIMANO GRX BR-RX400
| Parameter | 470(XS) | 490(S) | 510(M) | 535(L) | 550(XL) | 580(XXL) |
|---|---|---|---|---|---|---|
| Rider Height(cm) |
Below 166cm
|
166-174cm
|
175-180cm |
180-186cm
|
186-192cm
|
- |
| Rider Height(ft/in) |
Below5‘5’‘
|
5‘5’‘-5’8‘’
|
5‘8’‘-5’10‘’ |
5‘10’‘-6‘1’‘
|
6‘1’‘-6’3‘’
|
|
| A Seat Tube (mm) | 470 | 480 | 510 | 550 | 580 | 580 |
| B Top Tube (mm) | 512.4 | 530.1 | 557.6 | 576.2 | 591.9 | 604.8 |
| C BB Drop(mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| D Chainstay (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
| E Seat Angle (°) | 74° | 74° | 73° | 73° | 73° | 73° |
| F Head Angle (°) | 70.3° | 70.3° | 70.3° | 70.3° | 70.3° | 70.3° |
| G Front Center(mm) | 582.2 | 601.1 | 618.1 | 638.1 | 655.8 | 664.4 |
| H HeadTube (mm) | 110 | 140 | 160 | 190 | 210 | 220 |
| I Fork Offset (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| J Reach (mm) | 360 | 369 | 380 | 390 | 400 | 410 |
| K Stack (mm) | 533.6 | 561.8 | 580.6 | 608.9 | 627.7 | 637.1 |
| L Fork Length(mm) | 394 | 394 | 394 | 394 | 394 | 394 |
| M Wheelbase (mm) | 1000.7 | 1019.8 | 1037.6 | 1057.7 | 1074.4 | 1087.8 |
|
N Standover(mm) |
769.8
|
792.29
|
810.6
|
837.97
|
851.94
|
